Machine Encoder for gearless machine elevator spare part

Payment Type: T/T,L/C
Min. Order: 1 Piece/Pieces
Delivery Time: 20 Days

Basic Info

Model No.: ERN1387

Additional Info

Brand: XINDA

Transportation: Ocean,Air

Place of Origin: China

Product Description


Quick Details

Type: Elevator Parts
Place of Origin: China (Mainland)
Brand Name: Heidehain
Model Number: ERN1387
Working voltage: 50VDC
Pulse amount: 2048



Product Description

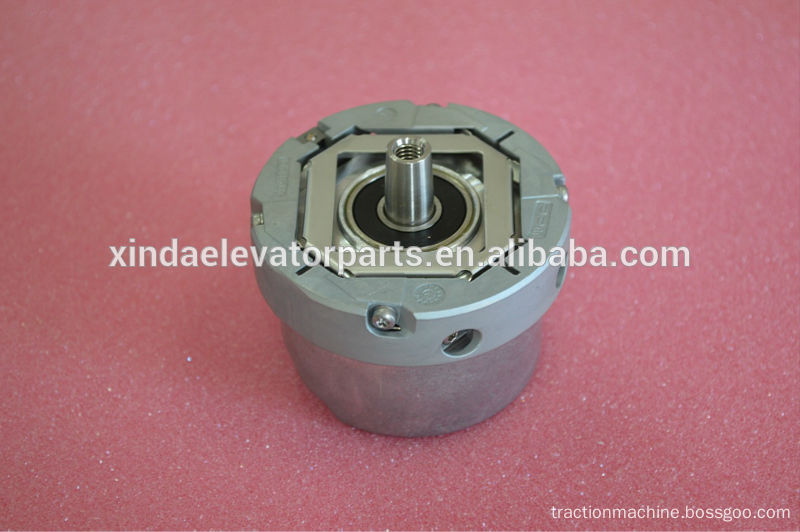

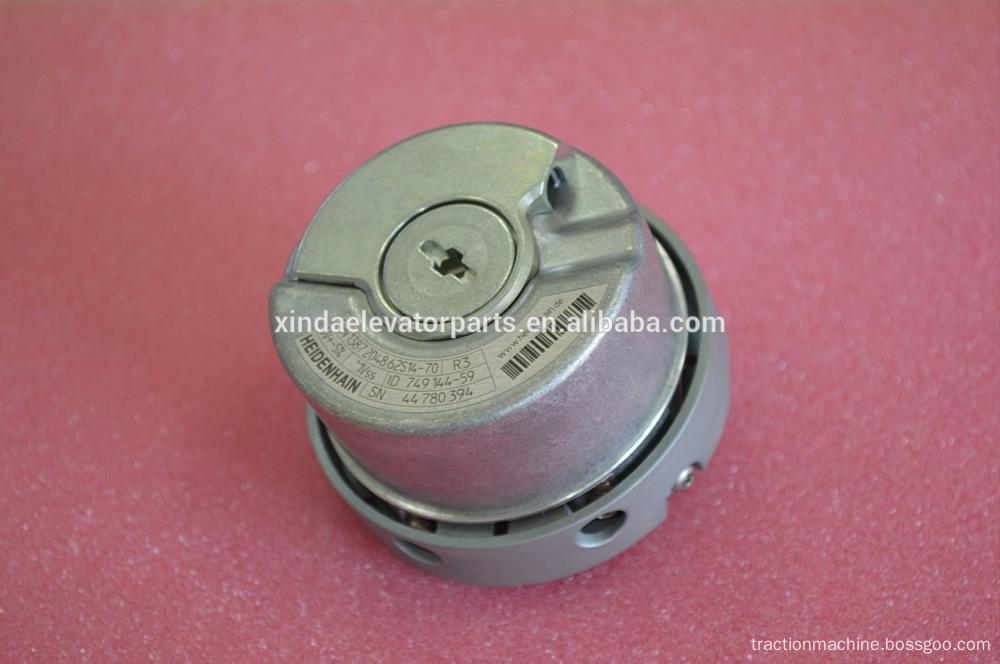

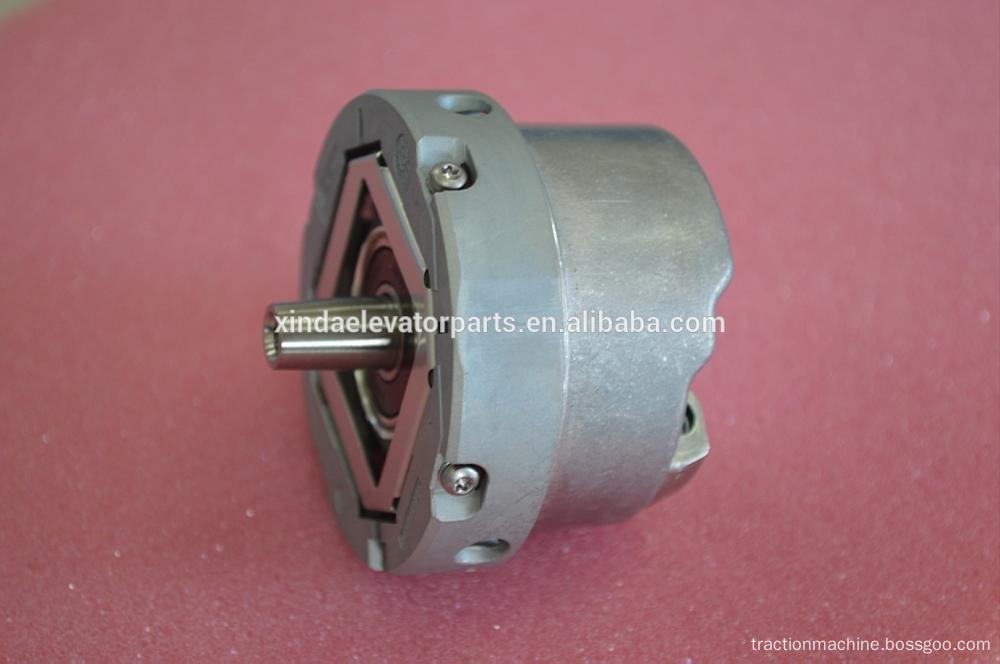

ERN1387 Heidehain Encoder for gearless machine elevator spare part



Product characteristics:

Working voltage: 50VDC

Pulse amount: 2048



Specification Form:

Working Voltage DC50±10%(Selv) Working Temperature -20°Cto+80°C
Current Consumption 120mA Storage Temperature -15°Cto+115°C
Power Consumption 1W Ambient Humidity 85%(non-condensing)
Output Signal A B Sine-Cosine 1Vpp IP Code IP40
Output Signal C D Sine-Cosine 1Vpp(1period pre rev) Max RPM 6000 RPM (max)
Output Signal R 0.4V(1pulse pre rev) Axial & Radial Load Axial 90N ,Radial 20N
Signal Accuracy ±35 Weight 1kg
Repeatable Accuracy ±7 Max Angle Acceleration 10 rad/s
Pulse Amount 2048 Start torque 20°C 1Ncm
Frequency Response 500Khz Vibration Endurance Vibrating (50-2000Hz) 100m/s (10g)
Isolation 10MΩ Impact(11ms) 1000m/s (100g)
Voltage Withstand 500V 1min Case Material AL
Shaft Dia 9.525mm Shaft Material 2Cr13
Axis Form Cone axis Shaft Diameter Φ30-65mm
Taper Ratio 1:10 Connection Type 0.5M Radial Outlet or +PCB plug
