Product Description
Quick Details
Type: Elevator Parts
Traction ratio: 2:1
Rated capacity: 800,1000kg
Rated elevator speed: 0.63, 1, 1.6, 1.75m/s
Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Number of motor poles: 20 poles
Traction sheave diameter: 400mm
Packaging & Delivery
Delivery Detail: 60 days after T/T in advance

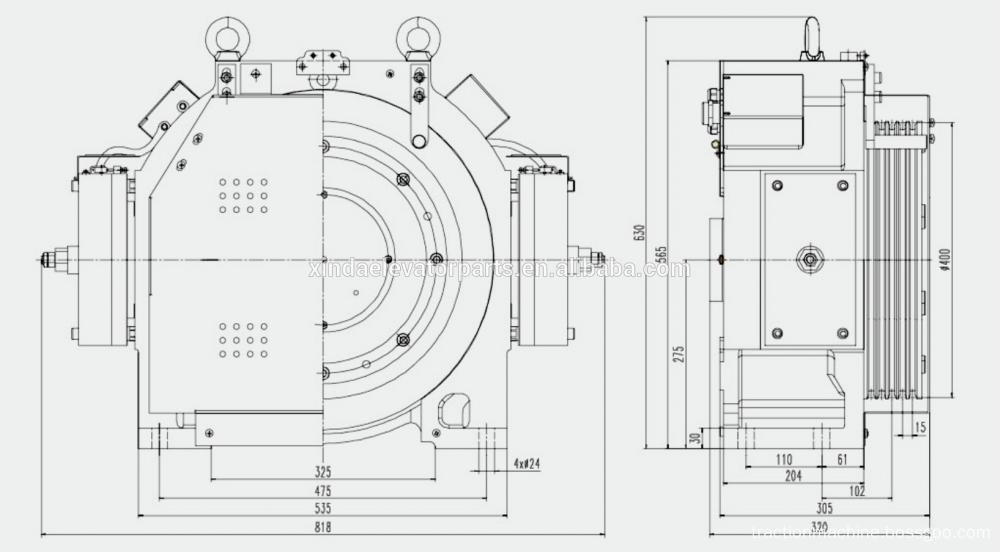

MINI5 series Gearless Traction Machine Ø 400 With Block Brake , High Braking Torque, Low Closing Noise, Gearless machine, elevator spare part
Product Description
This series of gearless traction machines has unique external rotor construction so that the forces are applied to the machine reasonably.
Excellent magnetic field design allows the machine to operate steadily with low noises and temperature rise.
It is provided with block brake, which has high braking torque and low closing noises. It`s a high-ratio product.
The product is provided with manual brake release device and remote brake release device, and can be used in small machine room elevators and non-machine room elevators.
Product Characteristics
Traction ratio: 2:1
Rated capacity: 800,1000kg
Rated elevator speed: 0.63,1,1.6,1.75 m/s
Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Number of motor poles: 20 poles
Traction sheave diameter: Ø400mm
.png)
