Gearless Permanent Magnet / Elevator Traction Machine 4000kg 3.0m/s WTYF380

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: WTYF380

Additional Info

Packaging: non-wooden

Productivity: 80000/year

Brand: XINDA

Transportation: Ocean

Place of Origin: CHINA

Certificate: CE / ISO9001 / ISO14001

HS Code: 84253190

Port: Ningbo

Product Description

Detailed Product Description



  1. Rated capacity: 1350~4000kg
  2. Rated elevator speed: 1.0,1.5,1.75,2,2.5,3.0m/s
  3. Max. lifting height: 120m
  4. We can supply various traction machines for you
  5. One of the most outstanding elevator traction machine manufacturers in Chinese Mainland

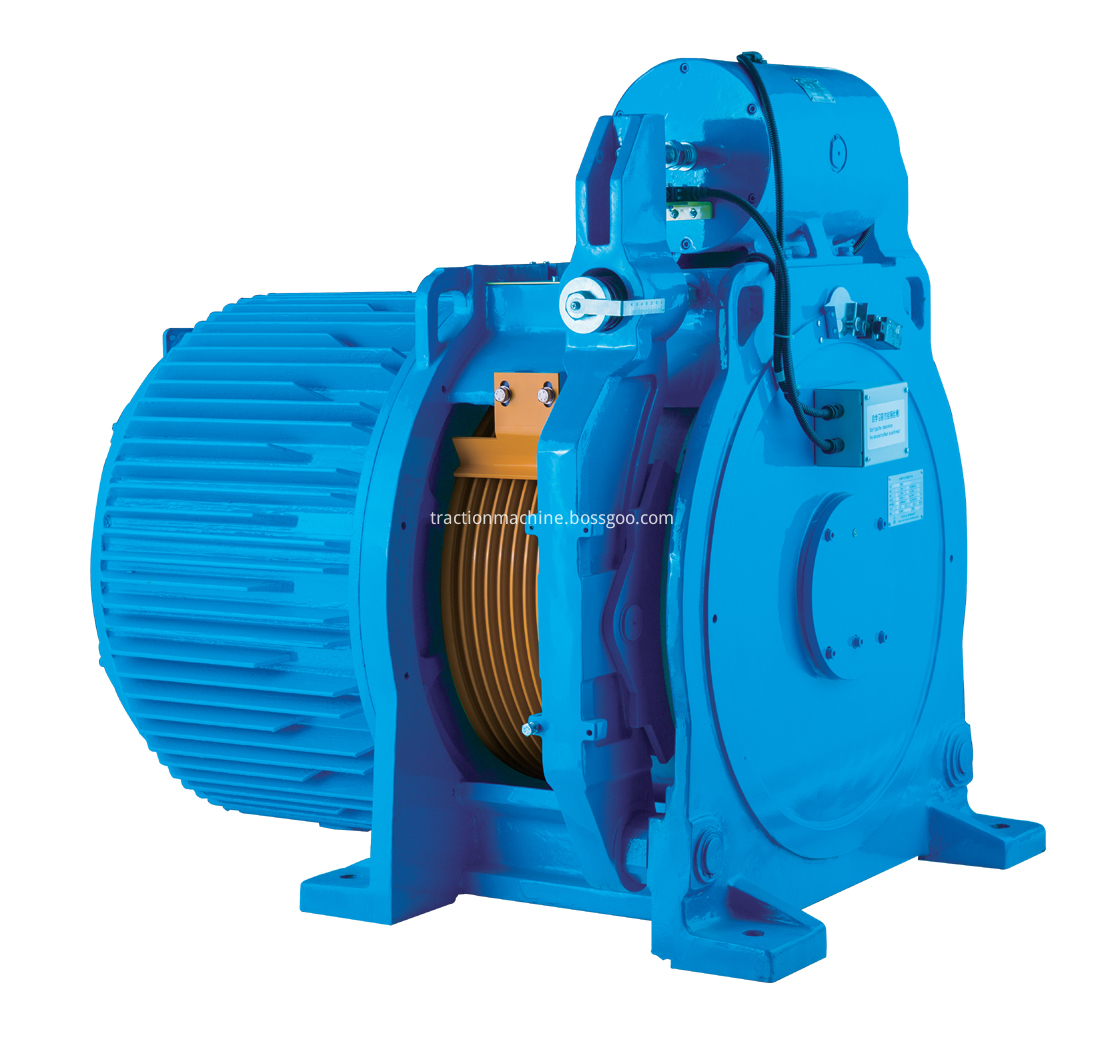

Permanent Magnet / Elevator Traction Machine 4000kg 3.0m/s , WTYF380


Product Description


This series of permanent-magnet synchronous gearless traction machines has large capacity and dual supporting structures, with traction sheave located between two bearings, so force application is more reasonable.

Drum brakes are applied for the traction machines, which have high braking torque, high reliability and easy maintenance and commissioning.

Unique internal rotor construction and excellent magnetic field design, enable the product to have excellent performance, low noise level and high-speed steady operation.

Imported bearings are applied, which have high bearing capacity and long life. The encoder is installed in various manners to meet different customer demands. This series of traction machines is applicable for the elevator with machine room.



Product Characteristics


Traction ratio: 1:1,2:1

Rated capacity: 1350~4000kg

Rated elevator speed: 1.0,1.5,1.75,2,2.5,3.0m/s

Max. lifting height: 120m

Max. shaft load: 10000kg

Applicable converter: 3 phase 400V

Brake voltage: DC200V for Brake opening, and DC100V for brake holding


Elevator Traction Machine
