|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
Model No.: WTYF380
Type: Driving System
Control Type: Microcomputer Frequency Control
Drive Mode: AC
Guide Rail: T Guide
Place of Origin: Zhejiang, China (Mainland)
HS Code: 84253190
|Delivery Detail:||60 days after T/T in advance|

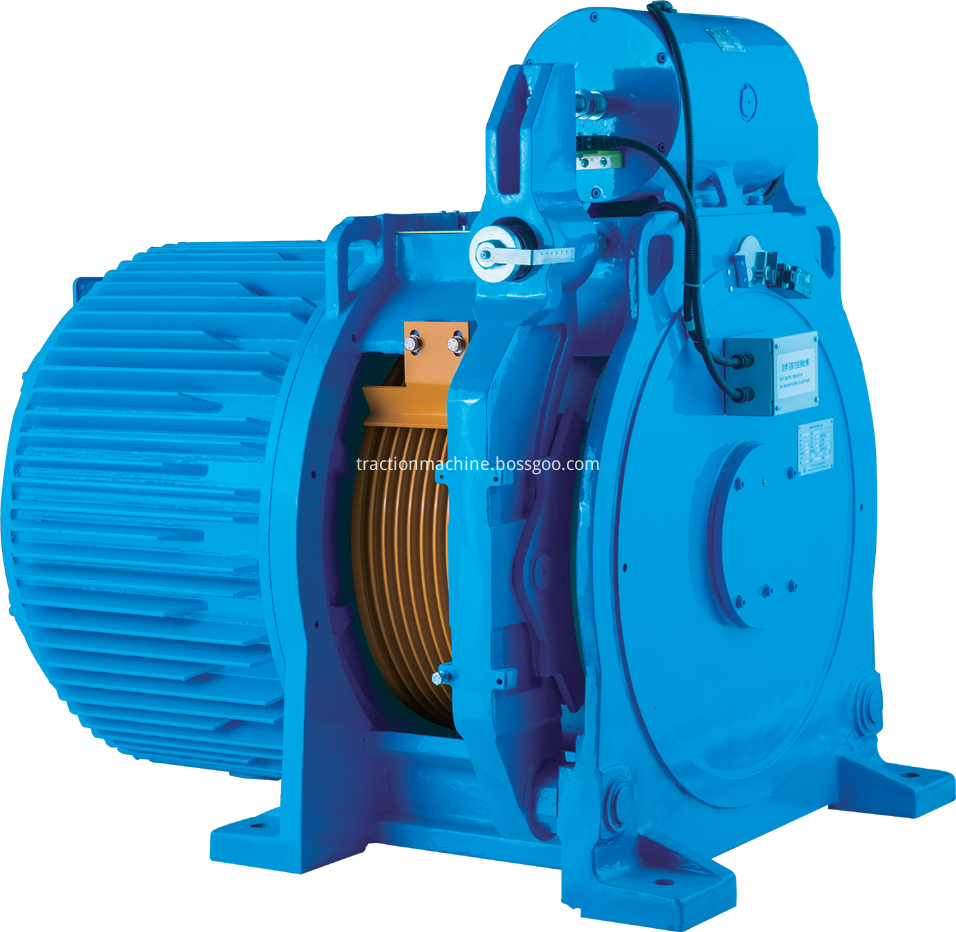

Permanent Magnet Gearless Traction Machine High Speed and Heavy Load WTYF380
This series of permanent-magnet synchronous gearless traction machines has large capacity and dual supporting structures, with traction sheave located between two bearings, so force application is more reasonable.
Drum brakes are applied for the traction machines, which have high braking torque, high reliability and easy maintenance and commissioning.
Unique internal rotor construction and excellent magnetic field design, enable the product to have excellent performance, low noise level and high-speed steady operation.
Imported bearings are applied, which have high bearing capacity and long life. The encoder is installed in various manners to meet different customer demands. This series of traction machines is applicable for the elevator with machine room.
Traction ratio: 1:1,2:1
Rated capacity: 1350~4000kg
Rated elevator speed: 1.0,1.5,1.75,2,2.5,3.0m/s
Max. lifting height: 120m
Max. shaft load: 10000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening, and DC100V for brake holding
Name:Gearless Traction Machine
